Nothing ruins a skirmish faster than a gel blaster that clicks, grinds, or spray-mists gels. This in-depth guide breaks down every common fault and walks you through practical troubleshooting steps, from beginner fixes like re-hydrating ammo to advanced repairs such as re-shimming a bevel gear. Follow the H2 flow to diagnose problems quickly, restore consistent FPS, and learn maintenance habits that prevent breakdowns on game day.
A gel blaster can stop working for one of four root reasons: under- or over-hydrated gels, exhausted or damaged batteries, magazine feed failures, or mechanical wear inside the gearbox. By working through a structured checklist—battery → barrel → magazine → gearbox—you can isolate 90 % of faults at home, fix them with basic tools, and keep your blaster running at peak FPS. The guide below expands every checkpoint with symptoms, tests, and cures, plus preventive care that will double the life of your gears and O-rings.
Featured Summary
-
Not firing ➜ Check battery voltage first; under 7 V on an 8.4 V pack won’t cycle the motor.
-
Grinding noise ➜ Plastic gears are stripped; stop shooting and install metal replacements.
-
Curved or wild shots ➜ Hop-up mis-set or barrel fouled by gel pulp; clean and realign.
-
Feed starvation ➜ Weak mag spring or over-swollen gels; test another mag and drain gels 5 min.
-
Gas or air leaks ➜ Dried O-rings; re-grease with silicone oil or replace.
Understanding the Firing Cycle
A small DC motor spins three gears that cock a piston and launch hydrated gels through a 7–8 mm barrel; an optional hop-up gives backspin for range. Failures usually show up where power (battery), compression (gearbox & O-rings), or ammo (gels & magazine) intersect.
Step-By-Step Diagnostics
1 Battery & Wiring Check
-
Measure pack voltage with a multimeter; anything 0.8 V below nominal means recharge or replace.
-
Inspect connectors—loose Tamiya or XT60 plugs spark under load and cut power mid-burst.
-
Listen for motor spin without piston movement; a sagging Li-po drops voltage when loaded even if resting voltage looks fine.
2 Barrel & Hop-Up Check
-
Shine a torch down the barrel; gel shards indicate a jam.
-
Pull a dry microfiber patch through until it exits clean. Rubbing alcohol is fine for metal barrels but avoid on nylon shells.
-
Loosen hop-up set screw, fire three test shots, tighten a quarter-turn at a time until flight path is flat.
3 Magazine & Gel Ammunition Check
-
Count gels per second from the feed tube; <10 rps signals a weak spring or motor.
-
Hydrate fresh gels exactly 3–4 h in clean water; minerals alter gel size and hardness.
-
Drain gels in a strainer for five minutes; surface water causes double-feeds.

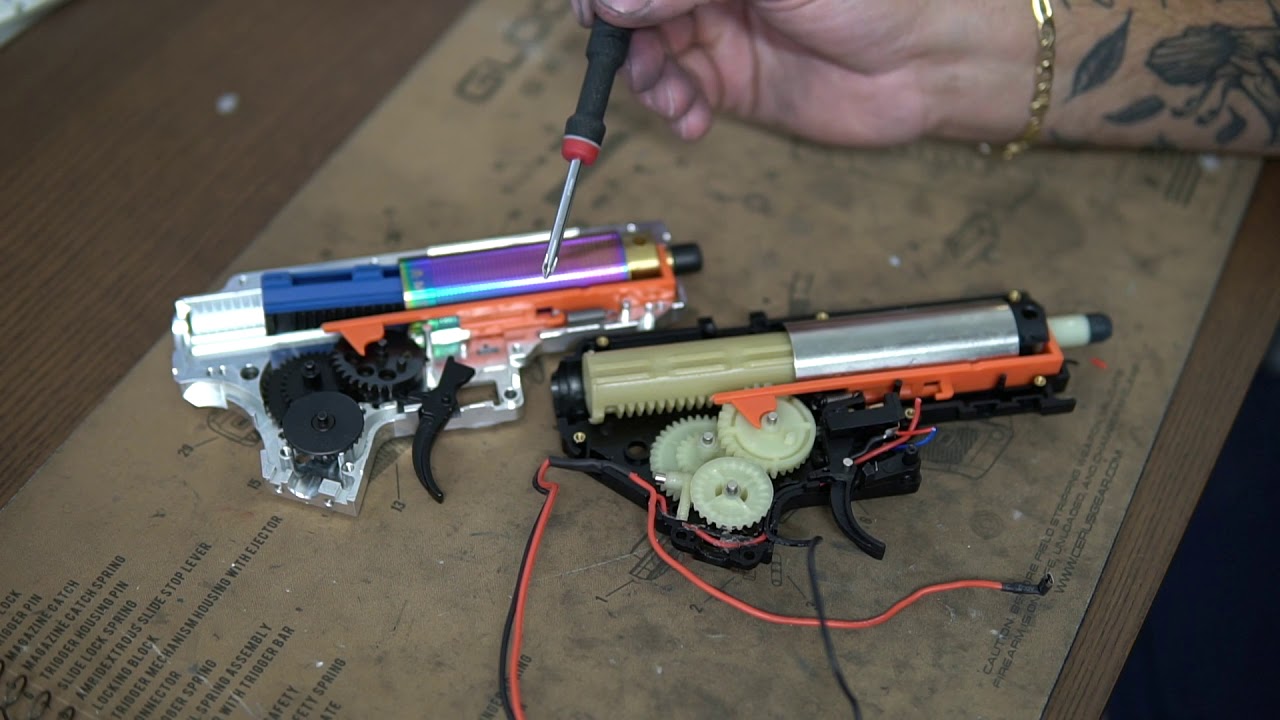

4 Gearbox & Motor Check
-
Remove motor plate and adjust height until the pinion barely touches the bevel with minimal whine.
-
Open shell, inspect gear teeth; white powder or half-missing teeth confirm strip. Upgrade to steel gears (13:1 or 18:1) and reshim.
-
Measure current draw; >20 A on full auto means binding or poor shimming.
Fault Library
Silent Trigger Pull
| Symptom | Likely Cause | Fix |
|---|---|---|
| No sound, no vibration | Flat Li-po | Charge 1 C; replace if puffed |
| Click only | Jammed piston | Release spring via semi-auto burst |
Motor Spins but No Gel Fires
Probable Cause: mag motor stalled or gels too soft. Solution: swap magazine, dry gels in paper towel.
Low FPS or Inconsistent Chrono
Soft gels deform under compression; switch to hardened “milky whites” and chrono again.
Gearbox Screech or Grind
Stop shooting immediately or the motor pinion will wear next. Replace nylon gears with metal set and shim 0.1 mm end-float max.
Hot Grip & Burning Smell
Over-springing forces the motor to 30 A continuous; downgrade to M90 or install high-torque motor and 16 AWG silicone wire.
Gas or Air Leaks
Silicone-lube all O-rings every game; petroleum grease swells seals and causes leaks.
Preventive Maintenance
| Task | Frequency | Why It Matters |
|---|---|---|
| Barrel dry-patch | After every match | Removes gel pulp that drops FPS |
| O-ring silicone oil | Monthly | Prevents magazine hiss & gas loss |
| Gearbox re-grease | 10 k shots | Reduces wear, keeps shims in place |
| Li-po storage charge | After play | Extends battery cycle life |
Regular cleaning, correct lubrication, and balanced batteries will double gearbox life and keep FPS within league limits.
Tools & Spares Checklist
-
Precision screwdriver set
-
1.5 mm & 0.1 mm shims
-
Li-po cell checker
-
Nylon cleaning rod
-
Metal 18:1 gear set
-
Hardened 7–8 mm gels
When to Call a Technician
If you still hear whine after new gears, if motor draw stays over 25 A, or if FPS spikes >350 without hop-up changes, seek pro help—these symptoms indicate mis-timed sector gear or cracked cylinder wall.
FAQ
Can I leave hydrated gels overnight?
Only if refrigerated in a sealed container with minimal water; room-temperature gels over-swell and jam.
Is alcohol safe for barrel cleaning?
Avoid on cheap ABS barrels; use silicone oil wipe instead.
How tight should the hop-up be?
Tighten until flight path is flat for 20 m, then lock with thread-safe glue.
Conclusion
Master this four-step diagnostic tree and preventive routine to keep your gel blaster reliable, accurate, and ready for the next skirmish. Small habits—correct gel hydration, timely O-ring lube, balanced batteries—prevent the costly failures that sideline many players.
